Transmitters · TX-100

TX-100 wireless transmitter: simple, 3 channels, for small events and home use

The essential transmitter: 3.5 mm jack input, 3-channel selector on the back, AC power. Connect it to a computer, smartphone or mixer and start transmitting right away.

For private parties, small events, indoor fitness classes and home or non-professional use.

3Channelsselector on the back

60 mRangemax, open field

3.5 mmInputAUX jack

StereoAudioS/N > 75 dB

The transmitter

Lightweight with a stable signal

The TX-100 is designed for anyone who wants a silent system without the hassle: one input, one selector, one power supply. Setup is instant, even with no technical experience.

  • 3.5 mm jack: direct connection to computers, smartphones, players and mixers.
  • 3 channels selectable from the back: channel 1, 2 or 3.
  • Stereo audio, S/N > 75 dB, distortion < 1%.
  • DC 12 V power: continuous operation, no batteries to manage.
  • Compact: easy to set up and transport.

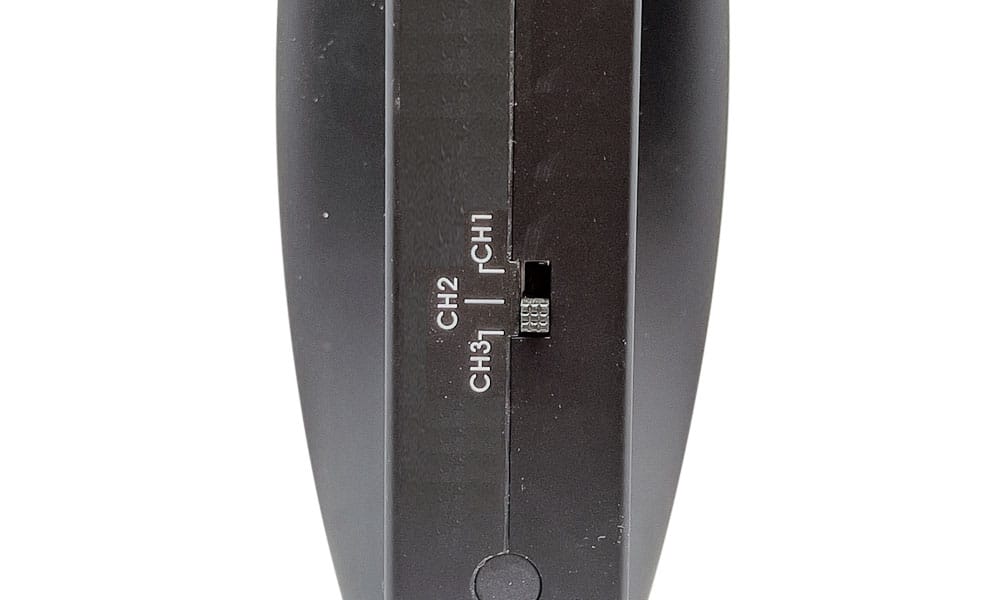

TX-100 transmitter channel selector
Video

See the TX-100 in under a minute

The video shows the channel selector, audio input and power. The full transcript is below.

Below is the full transcript of the video tutorial on the Silentsystem TX-100 wireless transmitter.

Introduction:
The Silentsystem TX-100 transmitter is a compact, reliable solution with three audio transmission channels. It is designed for smaller spaces, with a range of up to about 50 meters, delivering a stable signal and high audio quality.

Setup and use:
The TX-100 is designed to be extremely easy to use, making it suitable for industry professionals and users with no technical experience alike. Setup is instant, so your wireless audio system is up and running in no time.

Audio channel selection:
The channel selector on the back of the transmitter lets you choose between three transmission frequencies: channel 1, channel 2 and channel 3. This lets you run multiple audio streams at the same time, ideal for multichannel events.

Audio connections:
The device has a 3.5 mm mini-jack audio input for direct connection to a range of audio sources such as mixers, computers, smartphones or other compatible devices.

Power:
Next to the audio inputs is the transmitter’s power connector, which ensures continuous, stable operation throughout use.

Applications:
The TX-100 transmitter is ideal for a wide range of applications, including silent disco, private events, conferences, audio installations and educational settings, wherever audio needs to be distributed clearly and without interference.

Conclusion:
Thanks to its ease of use, compact size and RF signal quality, the Silentsystem TX-100 is a practical, efficient solution for wireless audio transmission in controlled environments.

Specs

TX-100 spec sheet

Parameter Value
Model Silentsystem TX-100
Type RF wireless audio transmitter
Technology UHF / RF, FM modulation
Channels 3
Audio input 3.5 mm AUX jack
Audio mode Stereo
Range Up to about 60 m in open field
Transmission power < 10 mW
Frequencies 863 MHz / 915 MHz
Frequency response 30 – 20,000 Hz
S/N ratio > 75 dB
Distortion < 1%
Power DC 12 V, 150 mA

Actual range depends on the environment, obstacles and radio interference.

Recommended uses

Compatible headphones

Why choose them

Your entry into the silent world

  • Dead simple: plug it in, pick a channel, start transmitting.
  • 3 channels to run multiple audio feeds.
  • Universal 3.5 mm jack: computer, smartphone, mixer.
  • AC powered: no batteries to recharge.
  • Up to 60 m: ideal for rooms, private parties and small events.

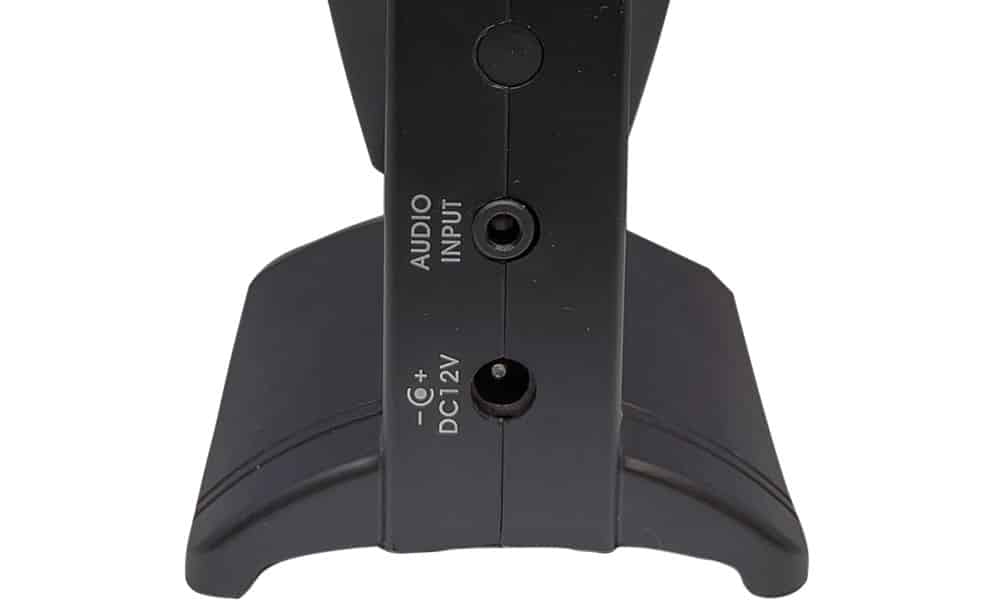

3.5 mm jack input on the TX-100 wireless transmitter
FAQ

TX-100 FAQ

Three, selectable with the switch on the back of the transmitter.

Up to about 60 meters in open space. Actual range depends on the environment and obstacles.

With a 3.5 mm jack cable: computers, smartphones, players or mixers.

With a 12 V DC power adapter, for continuous operation with no batteries.

No. The TX-100 transmits over radio frequency (RF) and doesn’t require any connection.

With Silentsystem SX-809, SX-808, SX-610 and SX-707 headphones.
Compare

Other Silentsystem transmitters

TX-400

Pocket-size, AAA battery powered, with mic input, up to 100 m.

TX-400 specs →

TX-300

The portable unit with voice-and-music mixer, Bluetooth and battery, up to 300 m.

TX-300 specs →

TX-500

High power, RCA input and metal housing, for large areas.

TX-500 specs →

All transmitters

Compare range, channels and inputs across every model.

Compare models →

Planning a silent party or small event?

Tell us about the occasion, guest count and space: we’ll recommend the right transmitter and headphones, for rental or purchase.
